Female ORS Swivel 90° Short Drop Elbow (FRB)

PRODUCT FEATURES
SPECIFICATIONS
DOWNLOADS
ACCESSORIES

Product Code: Female ORS Swivel 90° Short Drop Elbow (FRB)

CLICK HERE FOR ANY FURTHER SUPPORT OR TECHNICAL CONSULTANT

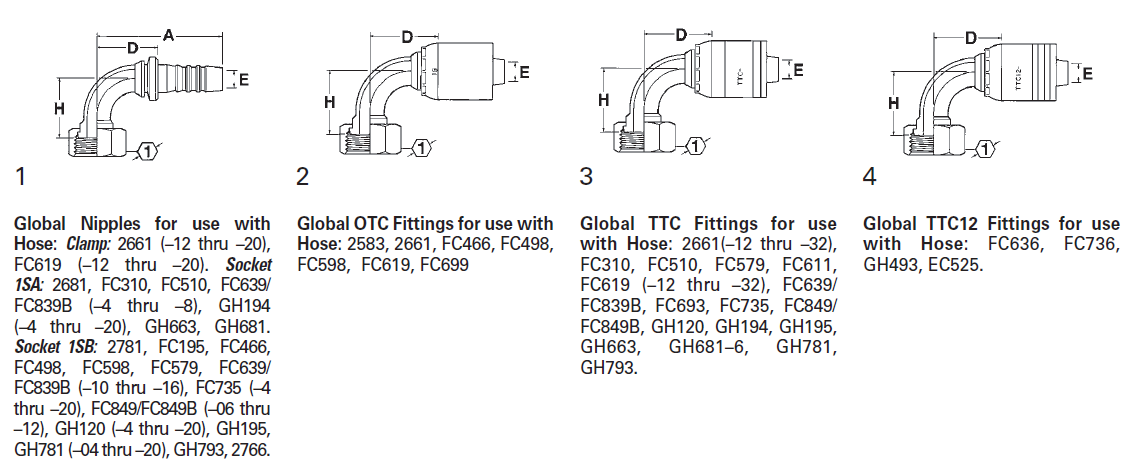

Nipple Part #	OTC Part #	TTC Part #	TTC12 Part #	Thd.	Hose Size	A	D	EØ	H	1
						mm in	mm in	mm in	mm in	in
1SA4FRB4	1GA4FRB4	1AA4FRB4	—	⁹/₁₆-18	–04	53,1 2.09	29,7 1.17	4,3 0.17	20,8 0.82	11_/₁₆
1SA6FRB4	1GA6FRB4	1AA6FRB4	—	¹¹/₁₆-16	–04	56,4 2.22	33,0 1.30	4,3 0.17	22,9 0.90	13_/₁₆
1SA8FRB4	—	—	—	¹³/₁₆-16	–04	60,2 2.37	36,8 1.45	4,3 0.17	30,2 1.19	15_/₁₆
1SA4FRB6	1GA4FRB6	1AA4FRB6	—	⁹/₁₆-18	–06	56,1 2.21	30,7 1.21	4,3 0.17	20,8 0.82	11_/₁₆
1SA6FRB6	1GA6FRB6	1AA6FRB6	1BA6FRB6	¹¹/₁₆-16	–06	59,4 2.34	34,0 1.34	6,6 0.26	22,9 0.90	13_/₁₆
1SA8FRB6	1GA8FRB6	1AA8FRB6	1BA8FRB6	¹³/₁₆-16	–06	66,5 2.62	41,4 1.62	6,6 0.26	29,2 1.15	15_/₁₆
1SA6FRB8	1GA6FRB8	1AA6FRB8	1BA6FRB8	¹¹/₁₆-16	–08	65,0 2.56	35,3 1.39	6,6 0.26	22,9 0.90	13_/₁₆
1SA8FRB8	1GA8FRB8	1AA8FRB8	1BA8FRB8	¹³/₁₆-16	–08	72,1 2.84	42,4 1.67	9,1 0.36	29,2 1.15	15_/₁₆
1SA10FRB8	1GA10FRB8	1AA10FRB8	1BA10FRB8	1-14	–08	78,0 3.07	48,5 1.91	9,7 0.38	32,3 1.27	1¹/₈
1SA12FRB8	1GA12FRB8	1AA12FRB8	1BA12FRB8	1³/₁₆-12	–08	87,6 3.45	57,9 2.28	9,7 0.38	47,8 1.88	1³/₈
1SA10FRB10	1GA10FRB10	1AA10FRB10	1BA10FRB10	1-14	–10	78,0 3.07	48,5 1.91	11,4 0.45	32,3 1.27	1¹/₈
1SA12FRB10	1GA12FRB10	1AA12FRB10	1BA12FRB10	1³/₁₆-12	–10	87,4 3.44	58,2 2.29	12,7 0.50	47,8 1.88	1³/₈
1SA10FRB12	1GA10FRB12	1AA10FRB12	—	1-14	–12	79,0 3.11	49,0 1.93	11,4 0.45	32,3 1.27	1¹/₈
1SA12FRB12	1GA12FRB12	1AA12FRB12	1BA12FRB12	1³/₁₆-12	–12	88,6 3.49	58,4 2.30	14,0 0.55	47,8 1.88	1³/₈
1SA16FRB12	1GA16FRB12	1AA16FRB12	1BA16FRB12	1⁷/₁₆-12	–12	102,6 4.04	72,4 2.85	15,5 0.61	56,1 2.21	1⁵/₈
1SA16FRB16	1GA16FRB16	1AA16FRB16	1BA16FRB16	1⁷/₁₆-12	–16	107,2 4.22	72,9 2.87	20,6 0.81	56,1 2.21	1⁵/₈
1SA20FRB16	1GA20FRB16	1AA20FRB16	—	1¹¹/₁₆-12	–16	123,2 4.85	89,0 3.50	20,6 0.81	63,8 2.51	1⁷/₈
1SA20FRB20	1GA20FRB20	—	1BA20FRB20	1¹¹/₁₆-12	–20	134,6 5.30	90,7 3.57	25,9 1.02	63,8 2.51	1⁷/₈
—	—	1AR20FRB20*	—	1¹¹/₁₆-12	–20	134,6 5.30	90,7 3.57	25,9 1.02	63,8 2.51	1⁷/₈
—	—	1AV20FRB20**	—	1¹¹/₁₆-12	–20	134,6 5.30	90,7 3.57	25,9 1.02	63,8 2.51	1⁷/₈
1SA24FRB24	1GA24FRB24	1AA24FRB24	—	2-12	–24	117,6 4.63	71,4 2.81	32,0 1.26	68,6 2.70	2¹/₄
